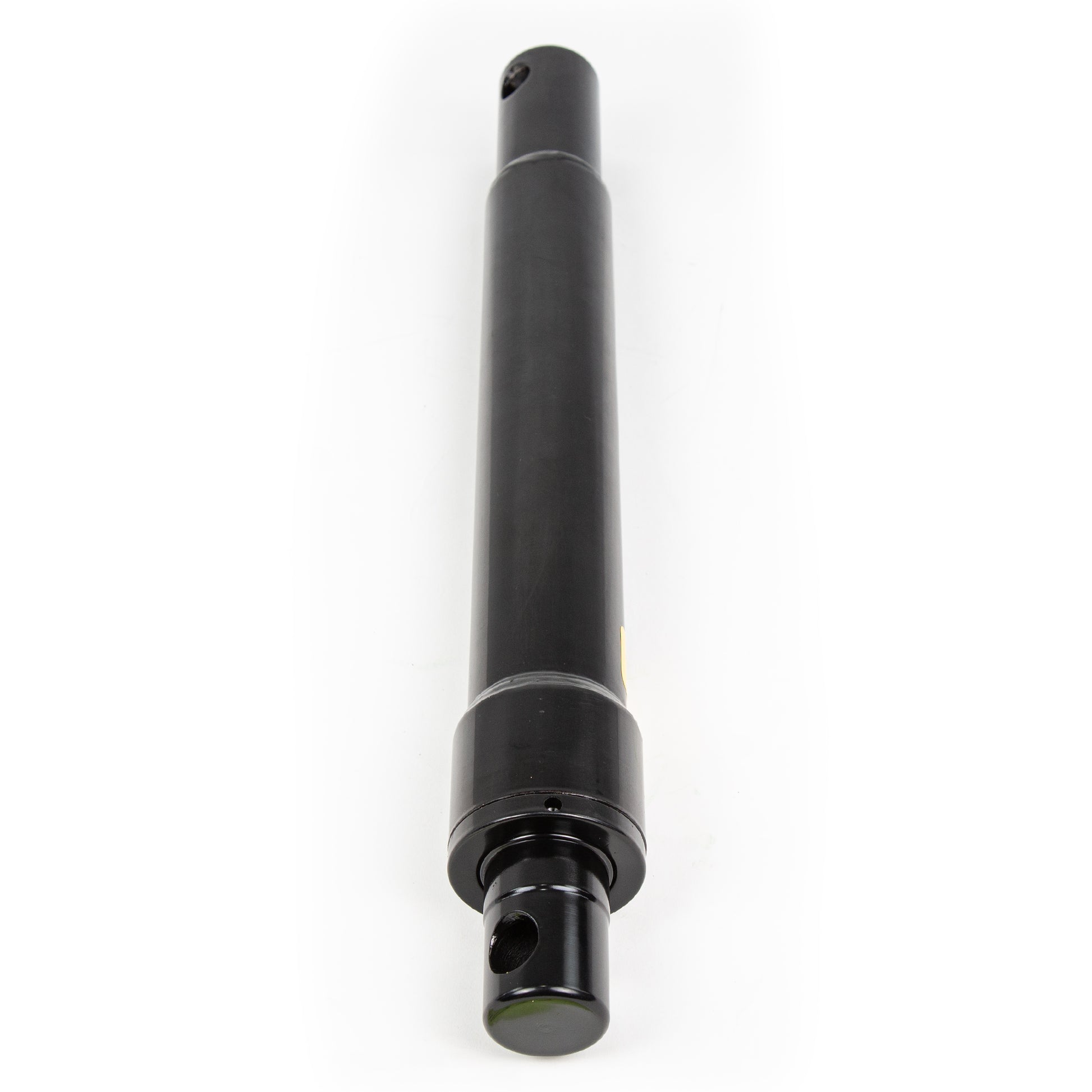

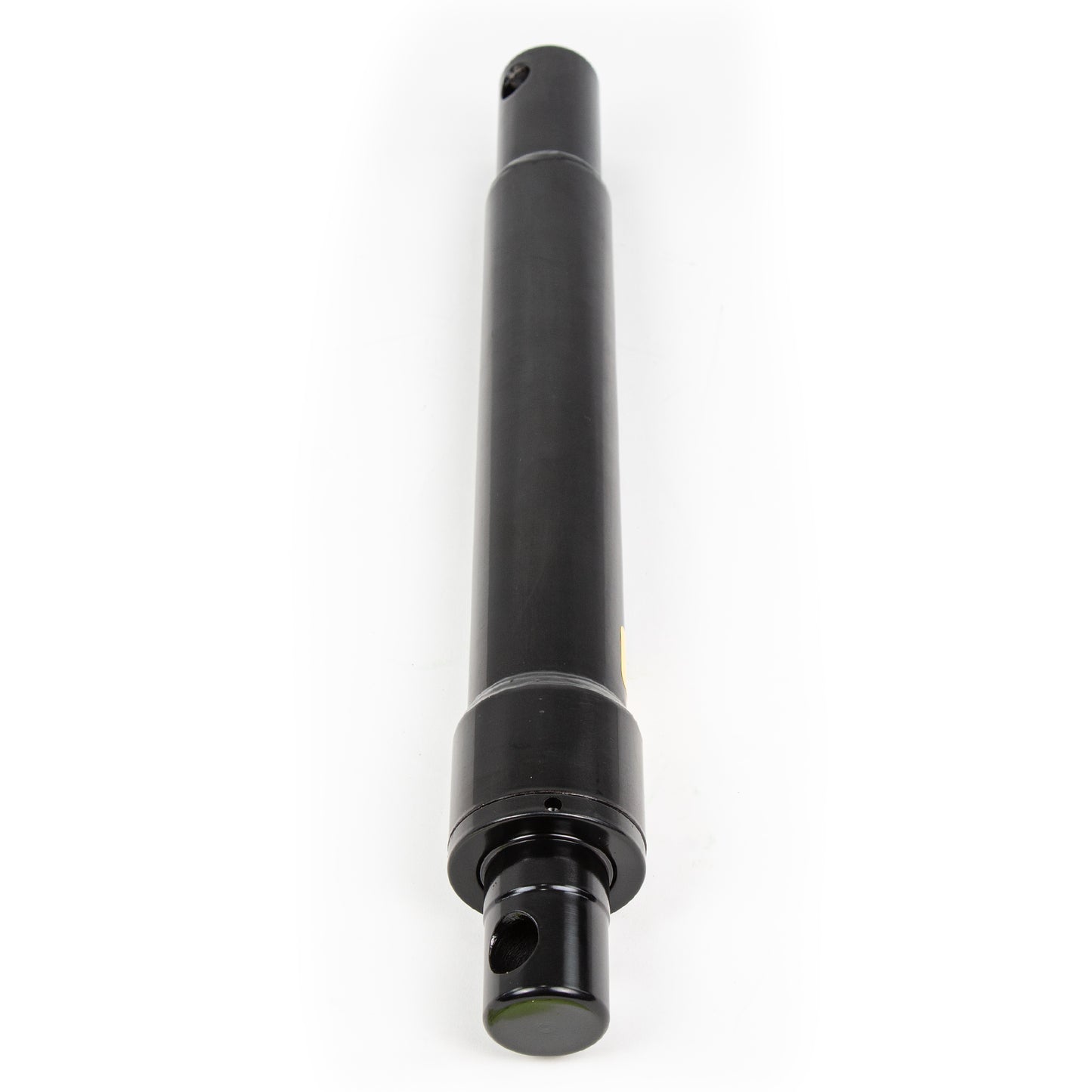

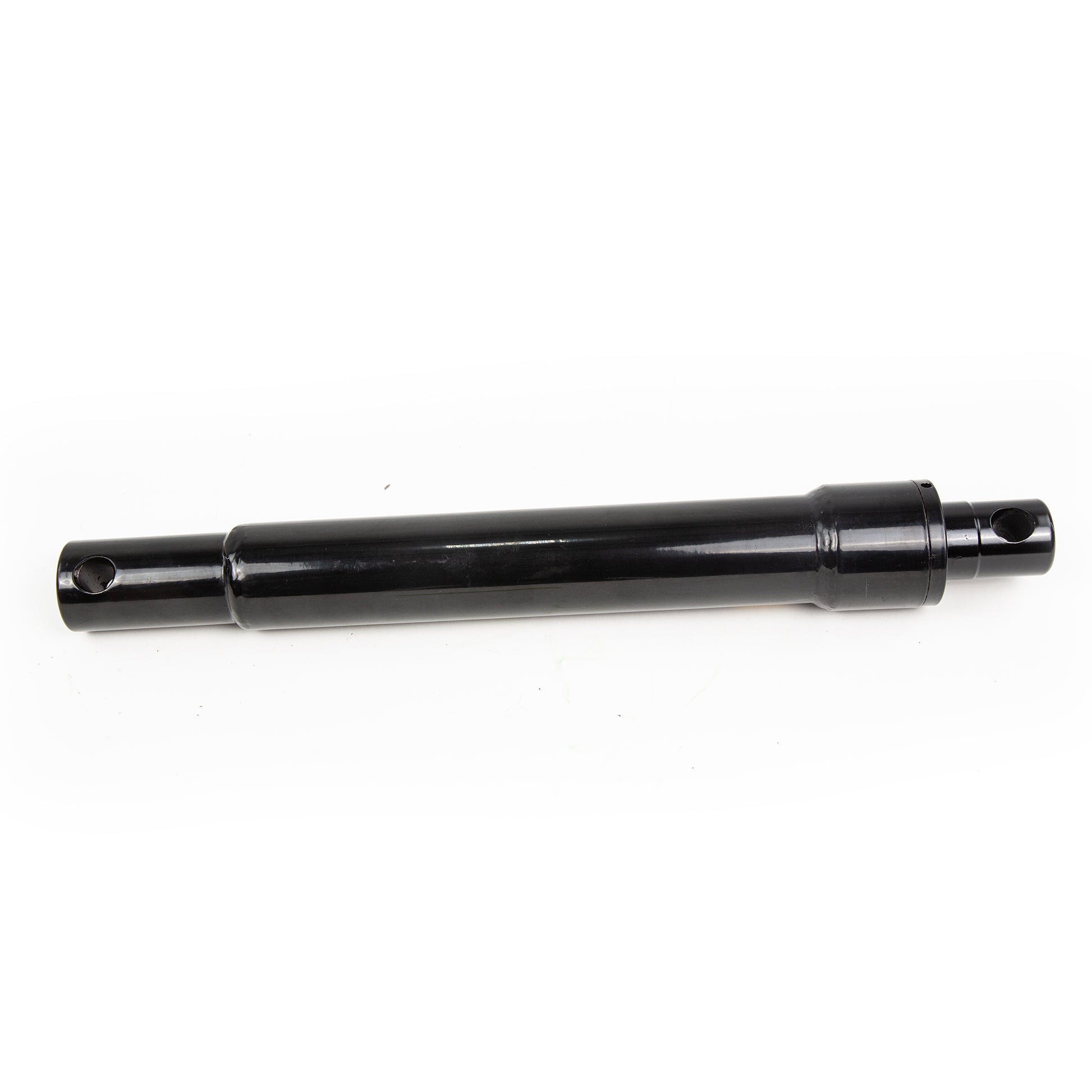

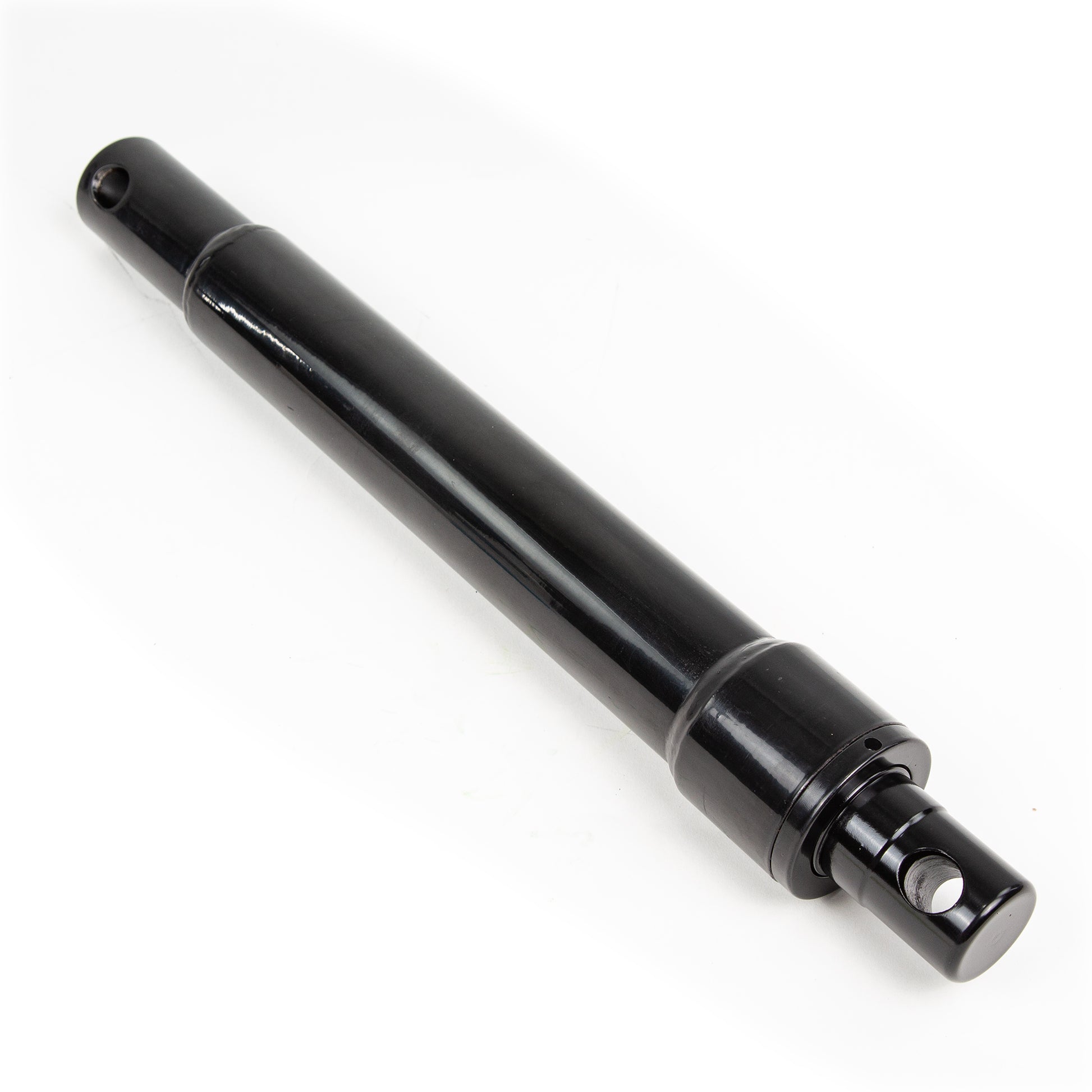

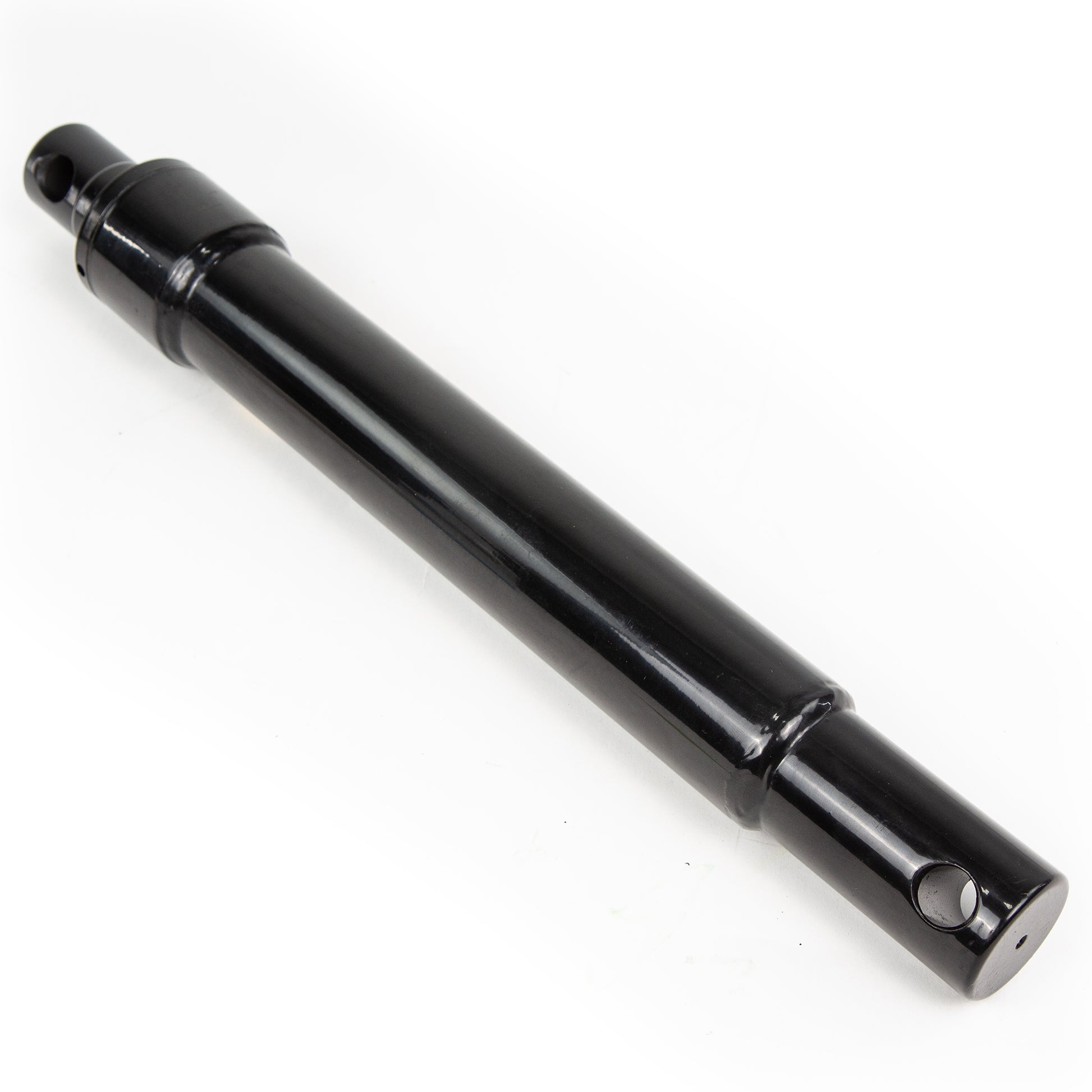

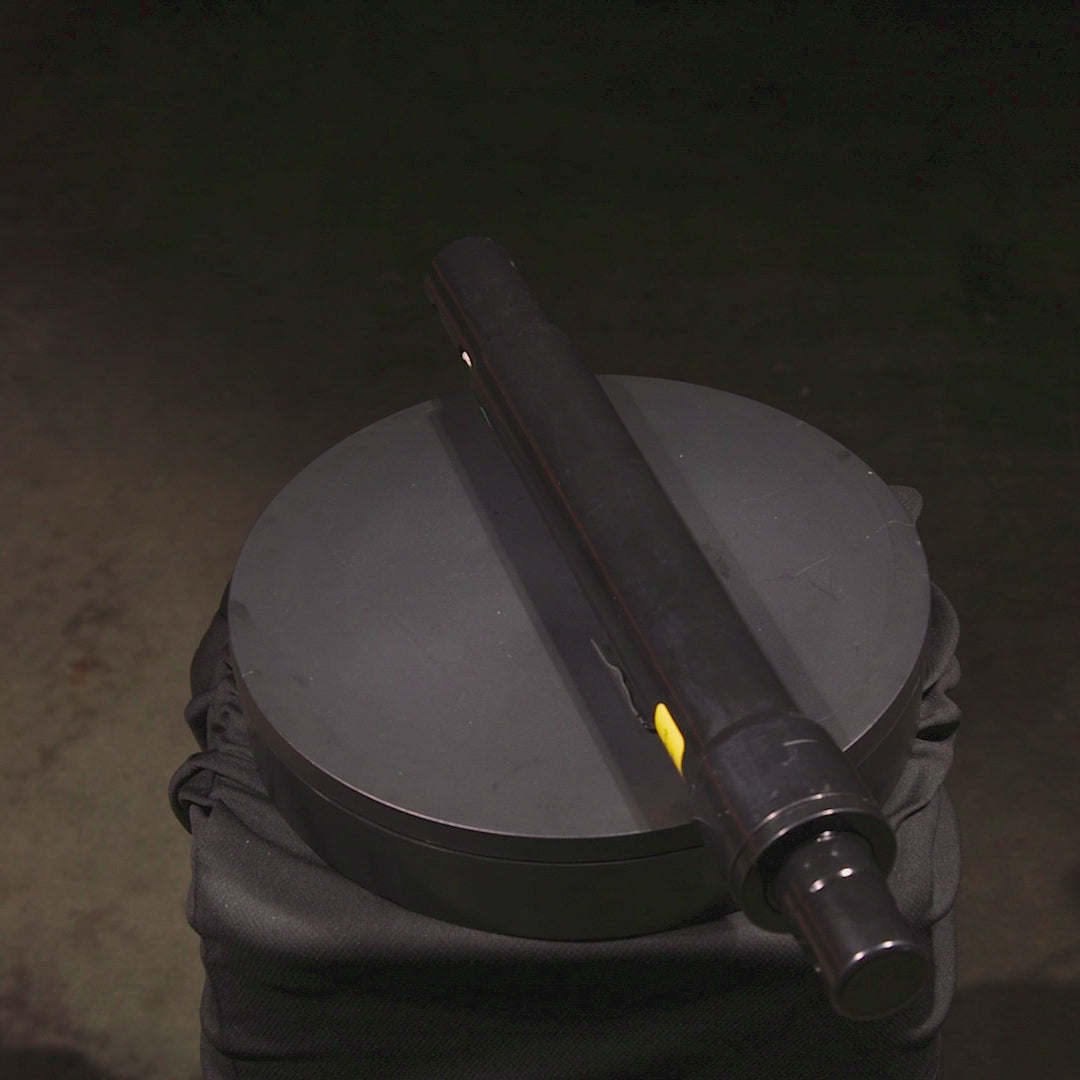

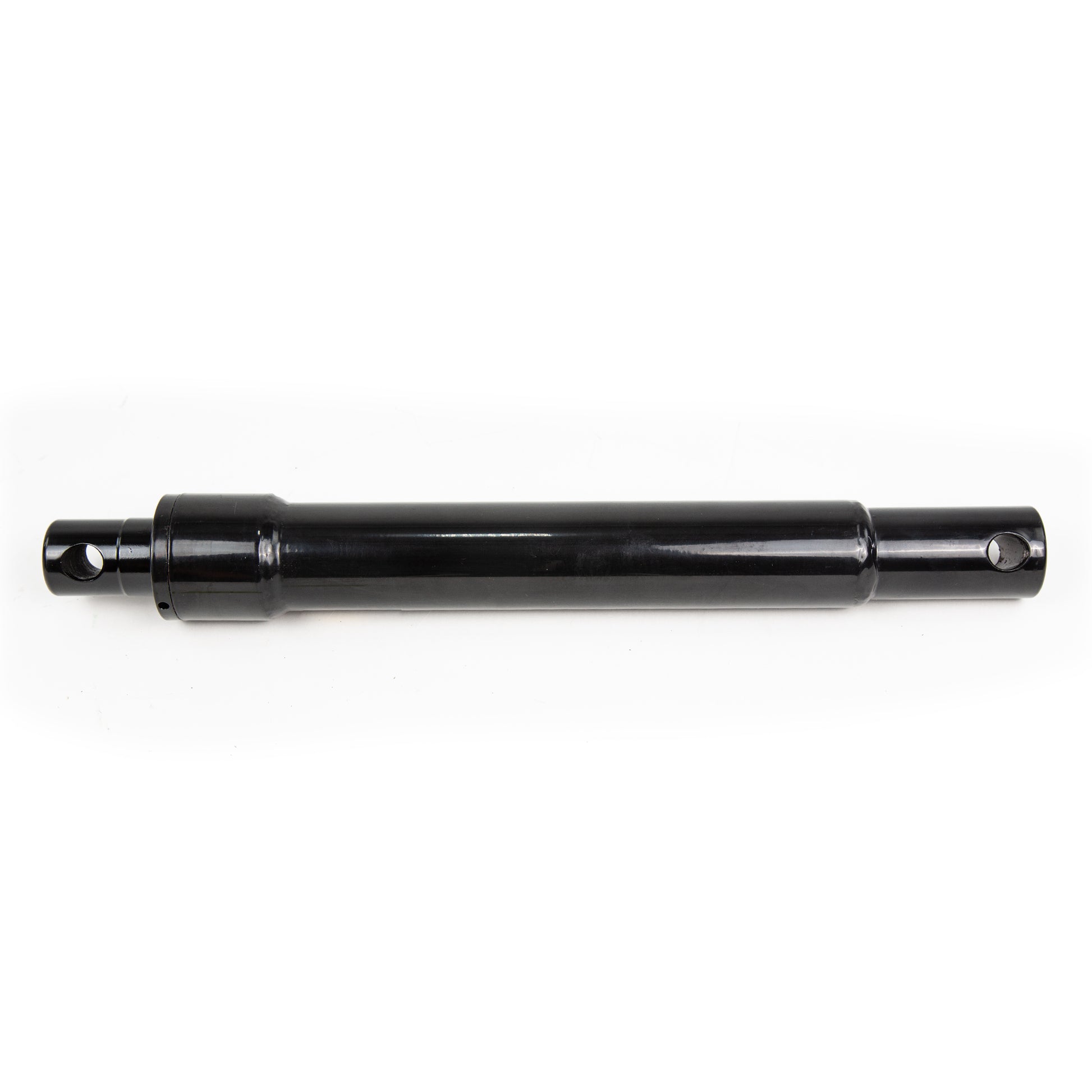

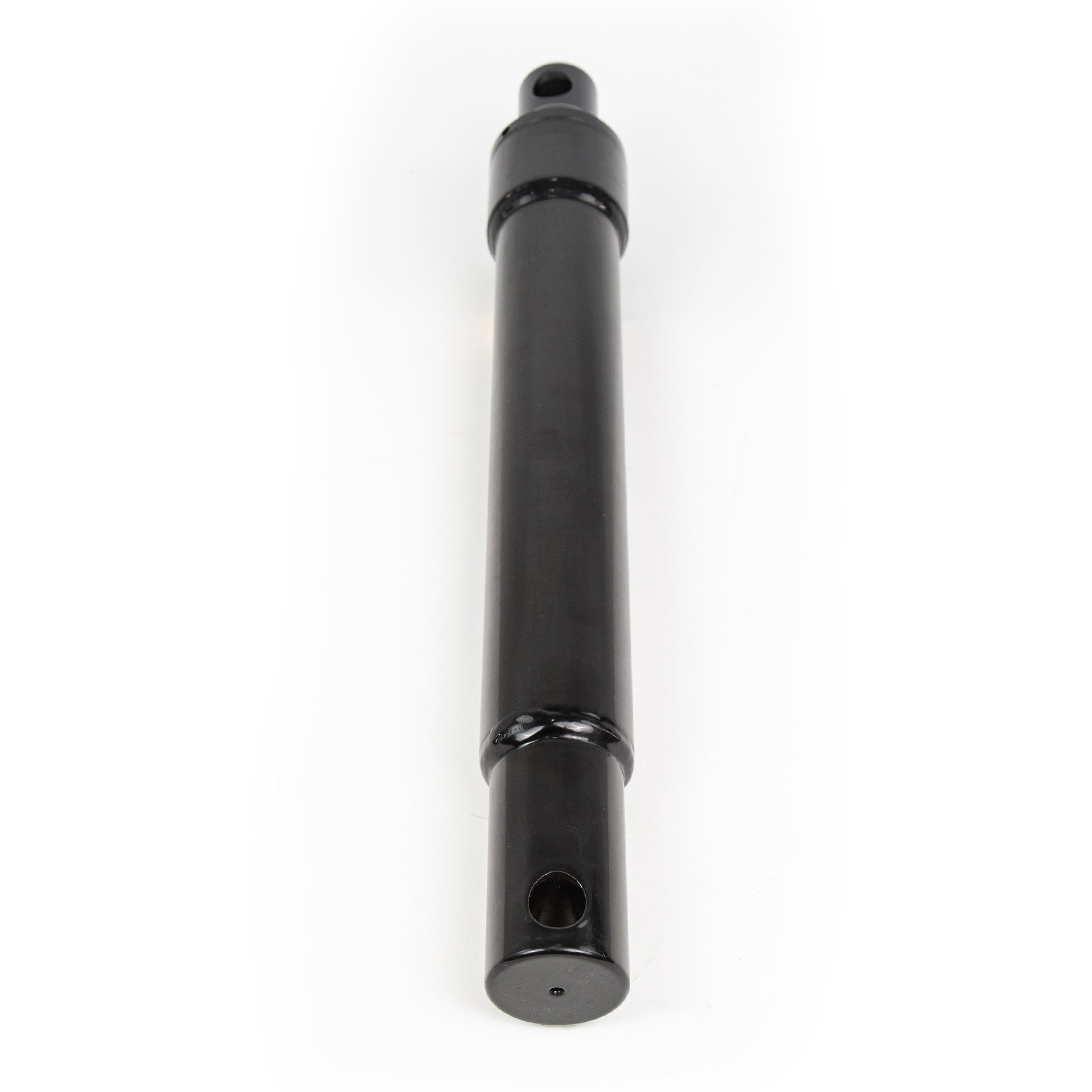

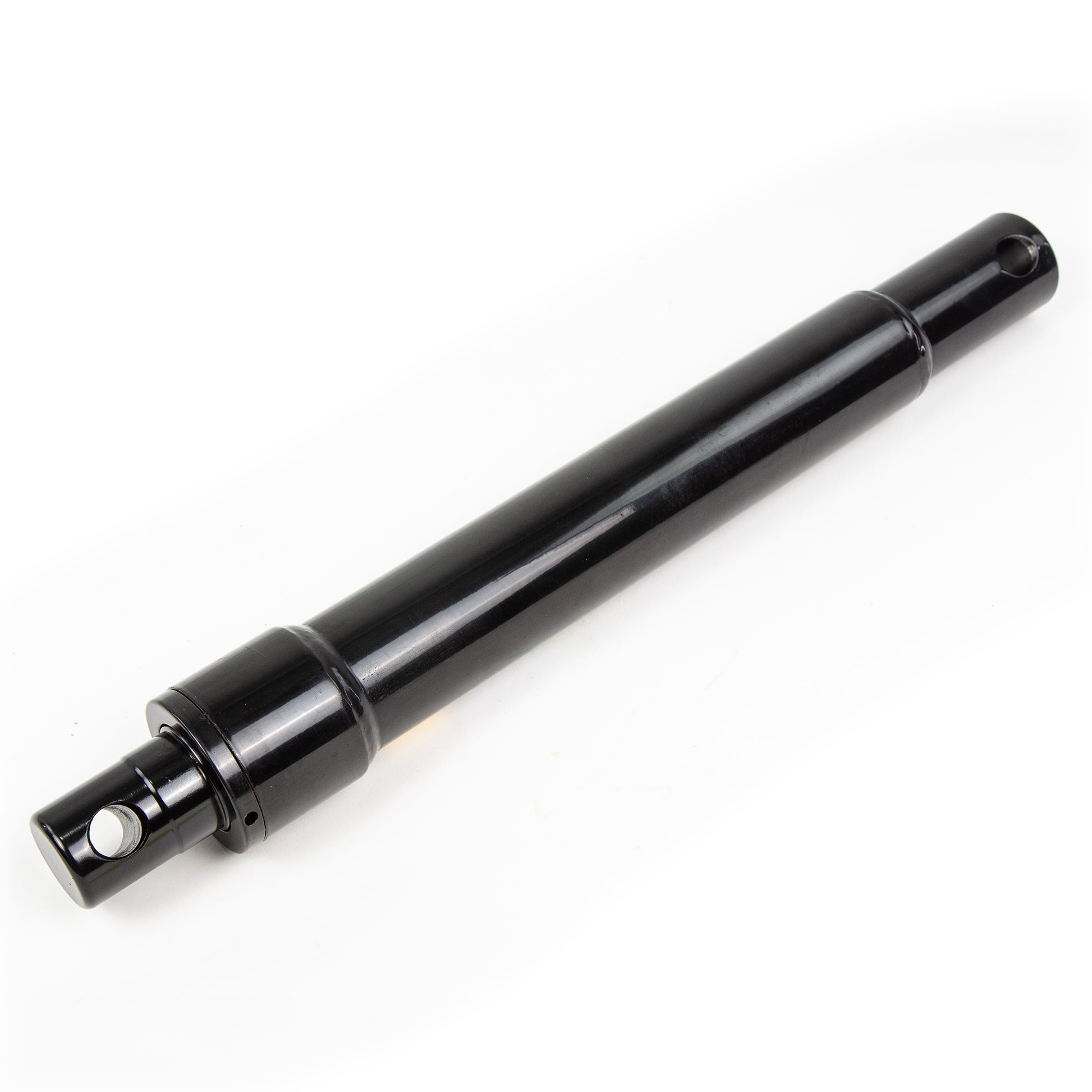

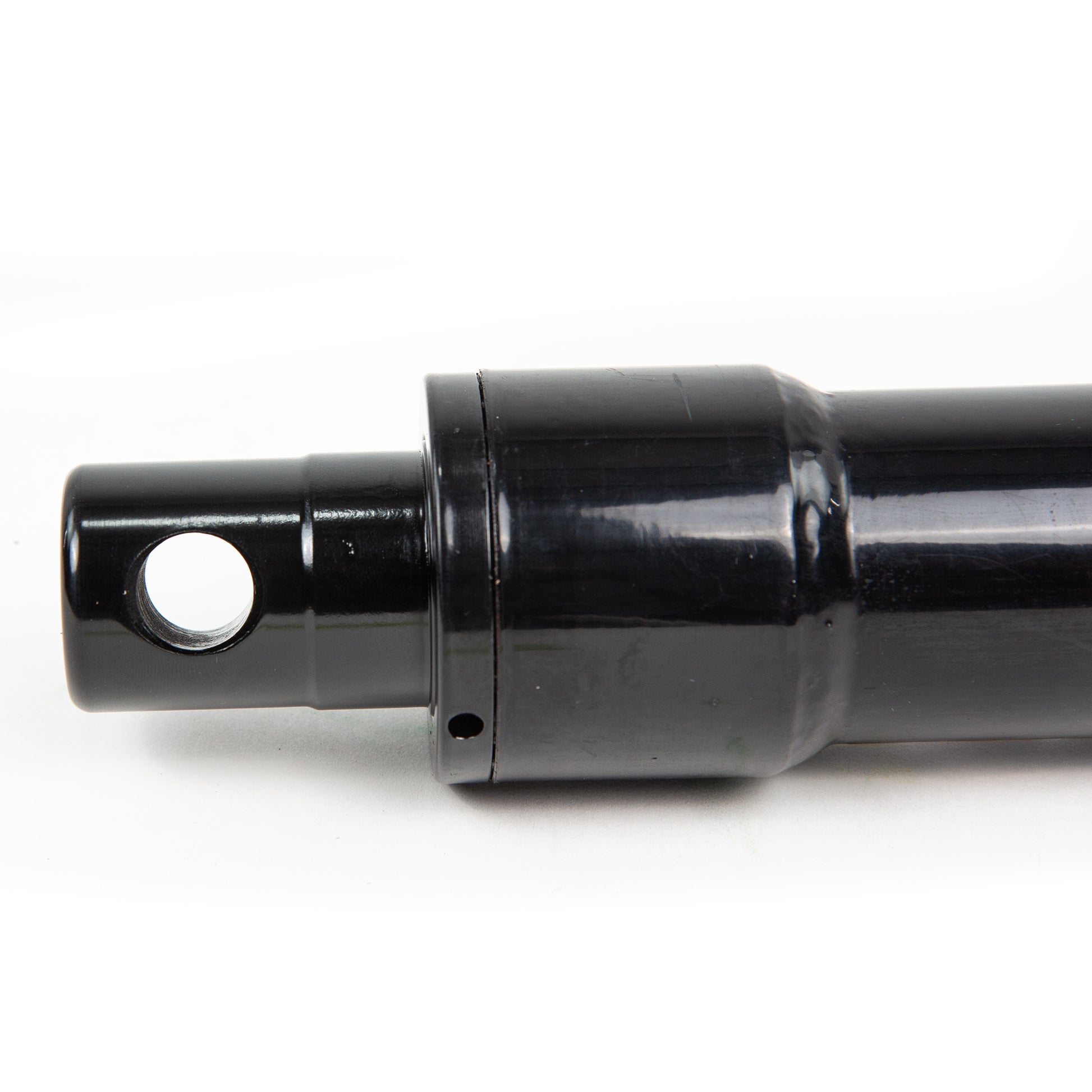

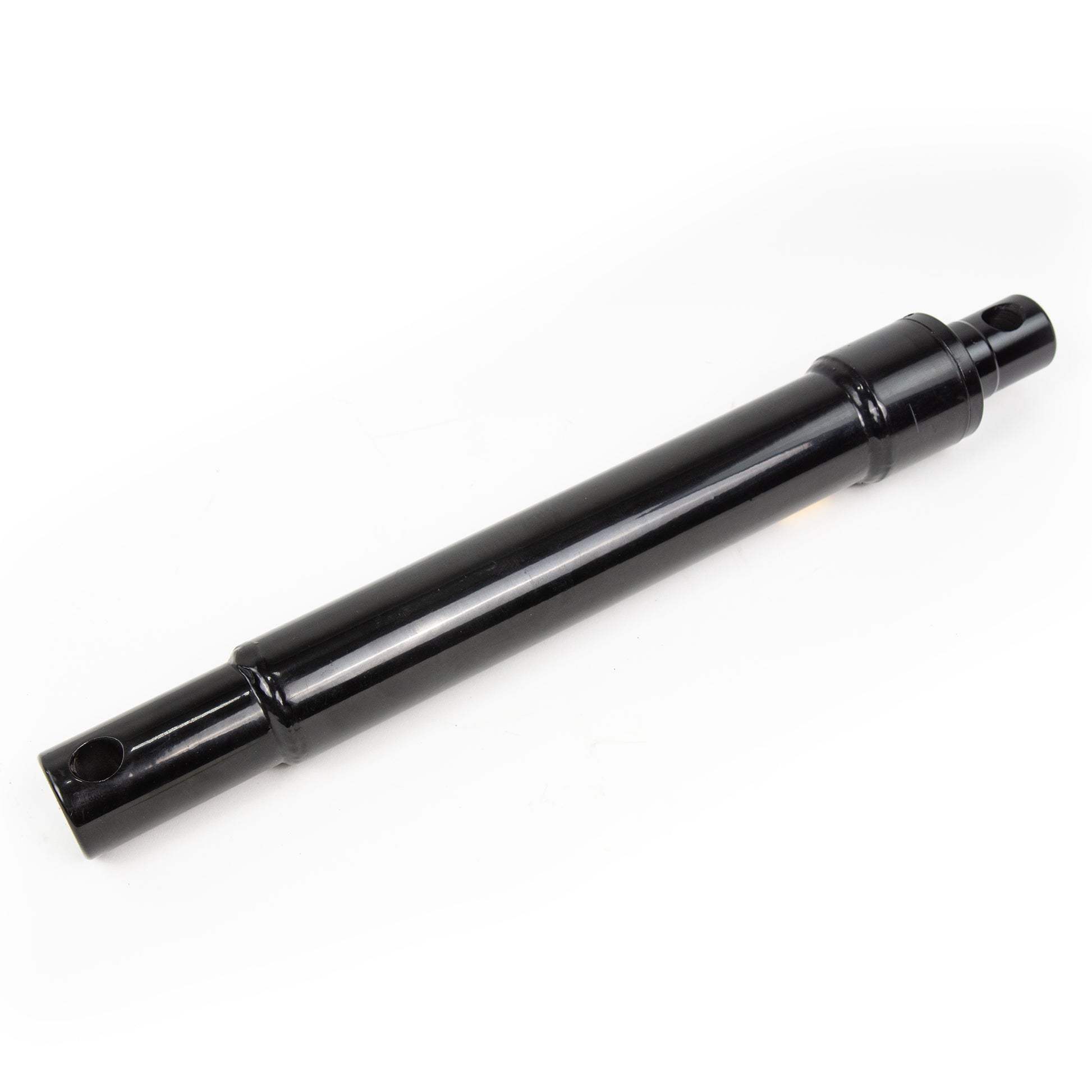

SmartLock Angle Cylinder, 1-1/2 x 10 in

Replaces BOSS HYD09733, HYD19033 · SKU MS-HYD09733
$349.99

Wing won't hold its angle? This single-acting 1-1/2 x 10 in cylinder replaces the SmartLock angle cylinder on full-size BOSS RT3 V-plows from 2006 on.

  • Replaces BOSS HYD09733 and HYD19033
  • 1-1/2 in bore, 10 in stroke
  • Fits Power-V, Power-V XT and DXT V-plows
  • One per wing, two per plow
Fits full-size BOSS RT3 V-plows, 2006 to present: Power-V in 7 ft 6 in, 8 ft 2 in and 9 ft 2 in (serial 90530 and higher), Power-V XT in 7 ft 6 in to 9 ft 2 in, and DXT in 8 ft 2 in and 9 ft 2 in.

Not sure it fits? Ask Mr. Snowplow with your plow model, or call (319) 730-3800

In stock — ready to shipShop Pay · Apple Pay · Amex · all major cards
Ships same day
2–7 day delivery
2-year warranty
On this part
Free Shipping Over $35
Quality Parts
Expert Support

What you get back

Wings that angle and hold where you set them.
Sized to the original: 17 in retracted with 5/8 in pins.
Order one for a single wing or two for the pair.
Specs & compatibility
Replaces
BOSS HYD09733, HYD19033
Bore
1-1/2 in
Stroke
10 in
Rod
1-1/2 in
Pin holes
5/8 in
Retracted length
17 in center to center
Overall closed length
18-1/2 in
Action
Single-acting
Port
In line with the mounting holes
Per plow
2 (one per wing)
SKU
MS-HYD09733
Common questions
What part number does the SmartLock Angle Cylinder, 1-1/2 x 10 in replace?
It replaces BOSS HYD09733, HYD19033.
What does the SmartLock Angle Cylinder, 1-1/2 x 10 in fit?
Fits full-size BOSS RT3 V-plows, 2006 to present: Power-V in 7 ft 6 in, 8 ft 2 in and 9 ft 2 in (serial 90530 and higher), Power-V XT in 7 ft 6 in to 9 ft 2 in, and DXT in 8 ft 2 in and 9 ft 2 in. Not sure? Call (319) 730-3800 or ask us online with your plow model, and a parts expert will confirm.
What warranty does it come with?
It comes with a 2-year warranty.
How fast does it ship?
Ships same day, with 2–7 day delivery.
Product details
  • Certified Mr. Snowplow Aftermarket Brand
  • Replaces: BOSS HYD09733, HYD19033
  • Application: Works on full-sized BOSS RT3 V-Plows made from 2006 to present, including:
    • Power-V (Standard) – Fits 7'6", 8'2", and 9'2" models (with a serial number of 90530 and higher).
    • Power-V XT – Fits 7'6", 8'2", and 9'2" models.
    • DXT V-Plows – Fits 8'2" and 9'2" dual-trip models
  • Key Specifications:
    • Bore Diameter: 1-1/2 inches (1.5" internal cylinder diameter)
    • Stroke Length / Travel: 10 inches
    • Rod (Center Shaft) Width: 1-1/2 inches across the chrome rod

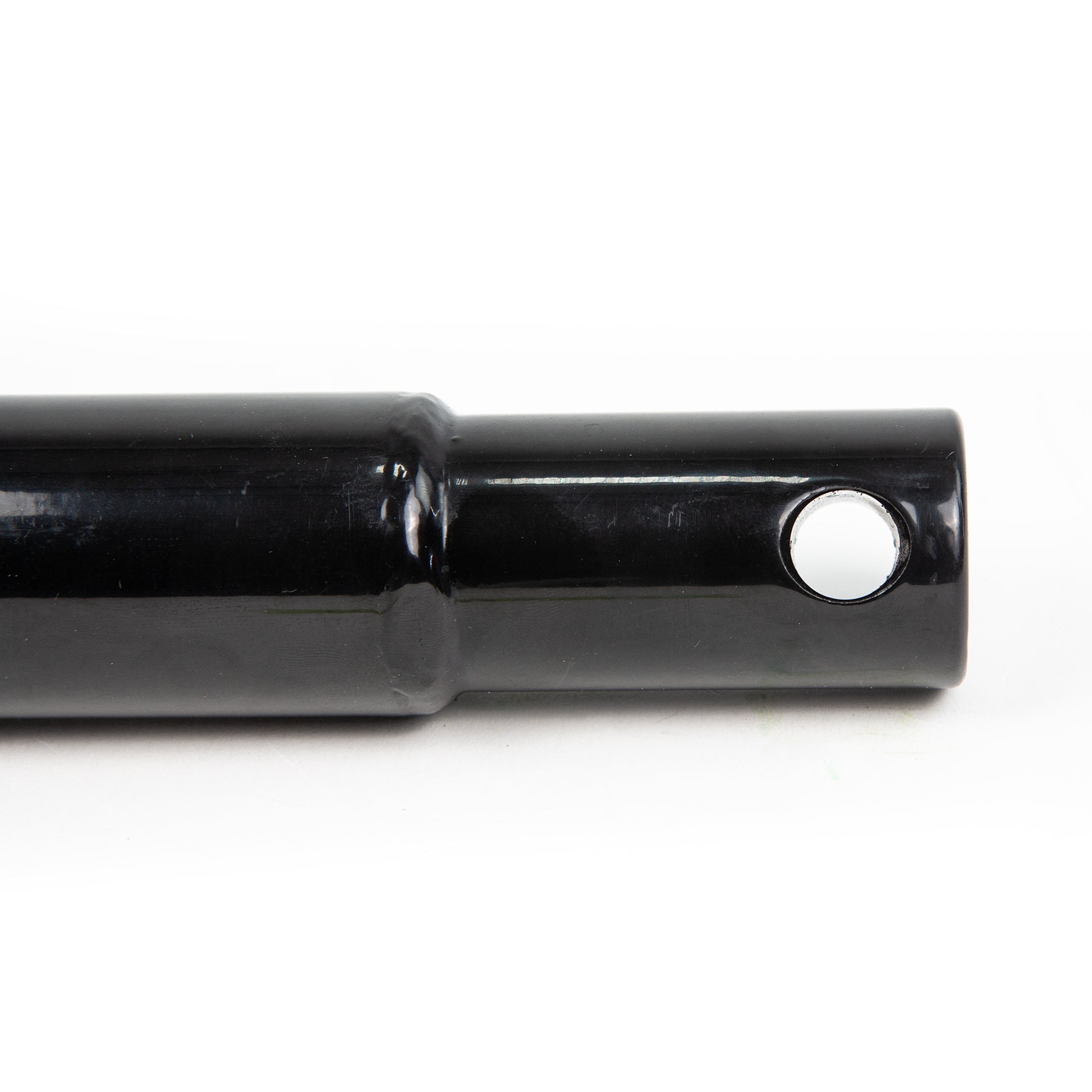

    • Pin / Mounting Hole Size: 5/8 inch pin holes
    • Retracted Length: 17 inches center-to-center from mounting holes when closed
    • Overall Closed Length: 18-1/2 inches total length end-to-end
  • Performance and Fitting Specs
    • Action Type: Single-acting hydraulic cylinder
    • Hydraulic Port Placement: In-line with the mounting holes

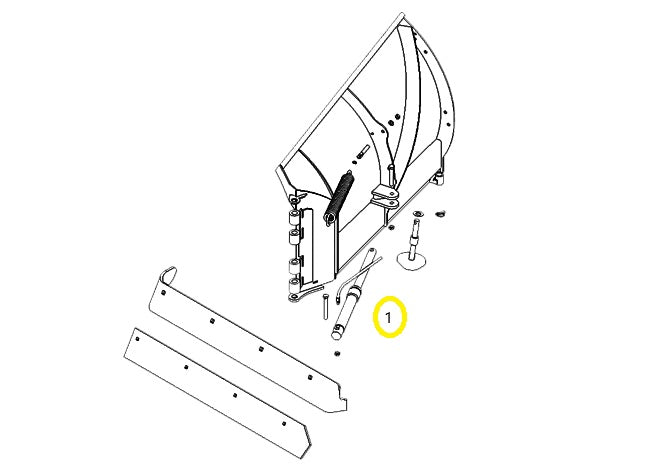

  • Function: Controls the left and right movement/angling of the plow wings via your controller (two cylinders are used per plow, one on each wing)
Shipping

Free shipping on US orders of $35 or more. Most orders ship the same day, and typical delivery is 2–7 days.

Warranty & returns

Backed by a 2-year warranty. Unused parts in the original packaging can also be returned within 30 days with proof of purchase.

Need help? Talk to an expert

Not sure this is your part? Our team can match it to your plow. Call (319) 730-3800 or ask us online with your plow model or a photo of the part.
