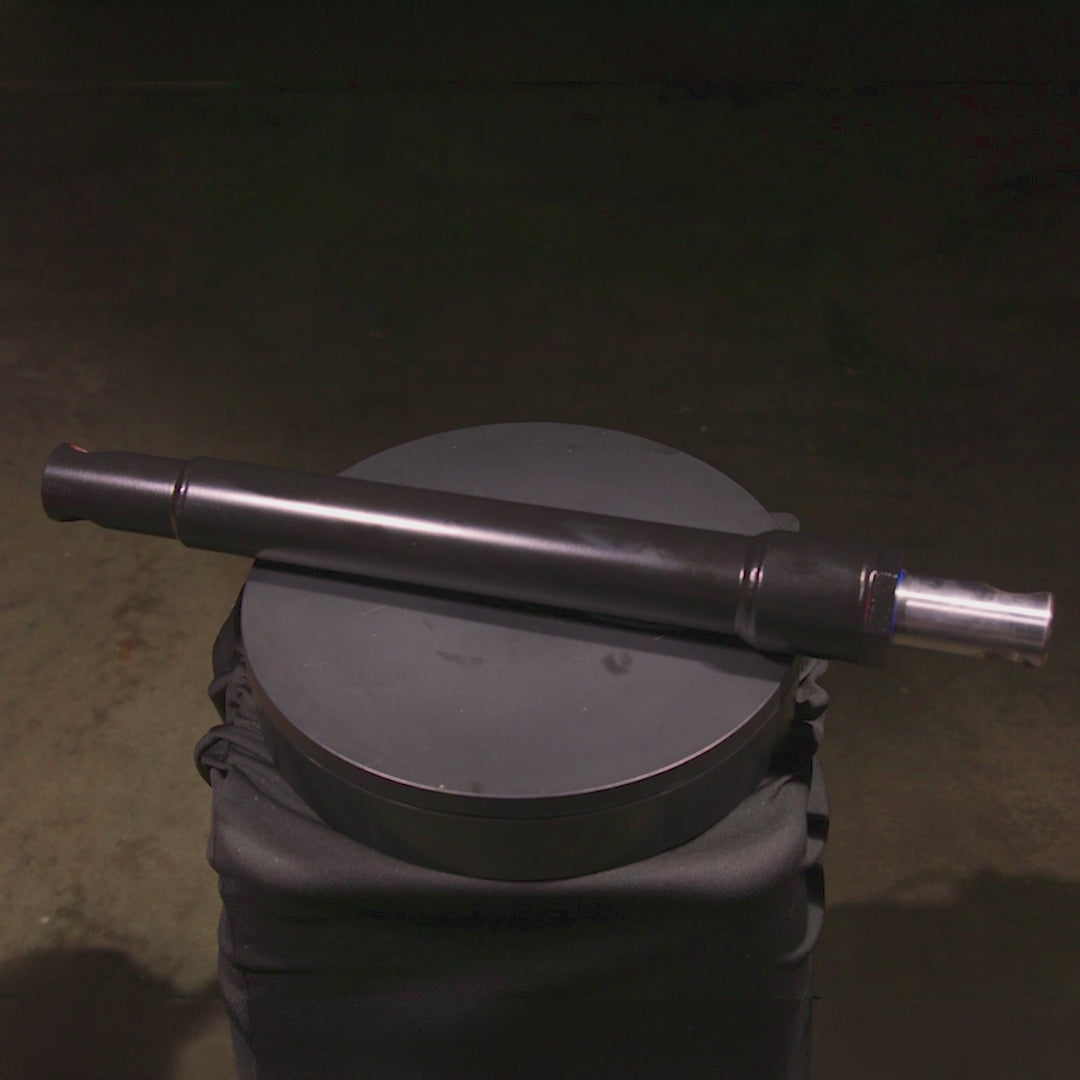

MR. SNOWPLOW REPLACES BUYERS 1304203 & WESTERN 64148 PRO PLUS SA HYDRAULIC ANGLE CYLINDER

MR. SNOWPLOW REPLACES BUYERS 1304203 & WESTERN 64148 PRO PLUS SA HYDRAULIC ANGLE CYLINDER

$144.99 USD
$144.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Certified Mr. Snowplow Aftermarket Brand
  • Replaces: WESTERN 64148, BUYERS 1304203
  • 1-1/2 inches
  • Stroke Length: 12 inches
  • Retracted Length (Center-to-Center): 19-1/2 inches
  • Extended Length (Center-to-Center): 31-1/2 inches
  • Rod Diameter: 1-1/2 inches
  • Pin Size: 1 inch
  • Port Type & Location: 3/8-inch SAE ORB (-6) at a 90-degree angle
  • Compatibility:
    • Used as a power angling cylinder on commercial-grade 8-foot, 8-foot-6-inch, and 9-foot straight blade plows
    • Fits as an angling cylinder on standard UltraMount commercial straight blades configured for a 1-1/2" x 12" ram profile
  • Installation Requirements:
    • Mounting: Uses a 1-inch pin size on both the base and rod ends. Ensure your existing A-frame and blade anchors aren't warped or rusted tight
    • Plumbing: Features a 3/8-inch SAE O-ring boss (#6 SAE ORB) port positioned at a 90° angle. Make sure your hydraulic hoses use matching #6 SAE male fittings rather than older NPT pipe threads
