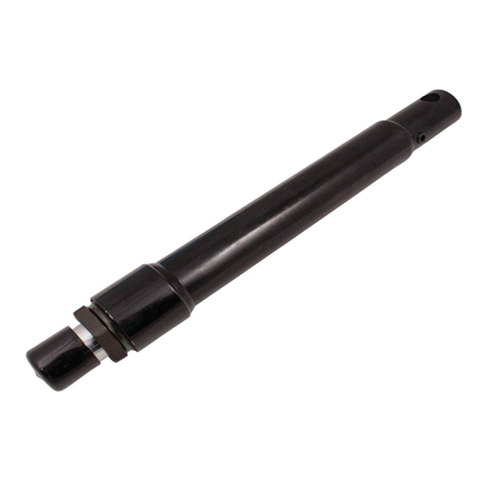

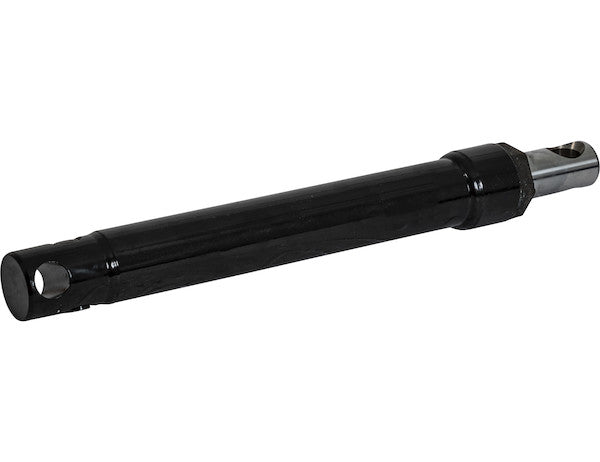

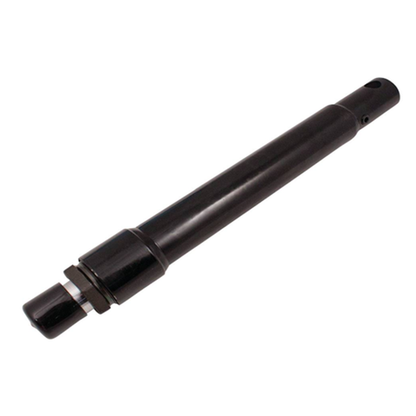

MR. SNOWPLOW REPLACES BUYERS 1304218 WESTERN 44341 FISHER 4434 SNOWEX 52635 POWER ANGLING CYLINDER 1-3/4" X 11"

MR. SNOWPLOW REPLACES BUYERS 1304218 WESTERN 44341 FISHER 4434 SNOWEX 52635 POWER ANGLING CYLINDER 1-3/4" X 11"

$155.99 USD
$155.99 USD
Sale Sold out
Shipping calculated at checkout.
  • Certified Mr. Snowplow Aftermarket Brand
  • Replaces: BUYERS 1304218, WESTERN 44341, FISHER 4434, 44340, SNOWEX 52635
  • Specifications:
    • Cylinder Type: Double-acting power angling
    • Bore Diameter: 1.75 inches (1-3/4")
    • Stroke Length: 11.0 inches
    • Rod Diameter: 1.50 inches
    • Pin Hole Diameter: 1.0 inch
    • Retracted Length: 18.25 inches (pin-to-pin center)
    • Extended Length: 29.25 inches (pin-to-pin center)
    • Port Type: #6 SAE O-ring boss (9/16-18 thread)
  • Materials and Construction:
    • Body: Welded steel body with black powder coat finish
    • Rod: Hardened and chrome-plated steel
    • Seals: High-performance, low-temperature hydraulic seals for winter conditions
  • Function: Designed to control the blade angle on snowplows
